Quick Details

  • Type: Other
  • Condition: New
  • Application: Beverage, Food
  • Packaging Type: Film
  • Packaging Material: Paper, plastic
  • Automatic Grade: Automatic
  • Driven Type: Electric
  • Voltage: 380V
  • Power: 54.5kW
  • Place of Origin: Zhejiang, China
  • Brand Name: Allfine
  • Model Number: G-A
  • Weight: 5000kg
  • Dimension(L*W*H): 4100(L)*4600(W)*2300mm(H)
  • Certification: CE Certificate
  • After-sales Service Provided: Engineers available to service machinery overseas

Packaging & Delivery

Packaging Details export standard package
Port ningbo

G-A 1300 High-speed Slitting Machine BOPP PET CPP PVC paper lable stick ect 1200mm unwinding rewind Up 800mm Down 1000mm



Usage characteristic:

This machine is used to check, rewind and cut all kinds of roll materials such as BOPP, PET, CPP and PVC.



Description of Main Pars

Unwind Section:

Structure:
1. separated unwinder
2. shaftless cone top type unwinder, hydraulic lifting, can adjust the width
3. EPC horizontal correction
4. Automatic tension control
Specification:
unwind dia:(MAX) φ1200 mm
Unwind motor power:11kw
Feature:
1.shaftless unwinder, more fast and convinient for up and down
2.With EPC, rewinding more neatly
3.With PLC to realize the auto tension control, more scientific and accurate
4.active unwinding motor,tension range can be controlled, more accurate



Adjusting roller and guide roller:

Structure :
1. adjustable structure is manual type
2. one side of adjusting roller is fixed and the other side can be adjusted by front and back
3. Adjusting roller, guide roller adopts imported bearings
Specifications:
1. adjusting roller diameter 100 mm
2. adjusting roller length 1650 mm
3. adjusting range ±20 mm
4. guide roller diameter 100 mm
5. guide roller length 1650 mm
Feature:
1.adopt the adjusting roller to suit for different quality material
2.After the roller being balanced, more stable when operation
3.adopting the imported high precision bearing, make the roller more stable and lower the noise when operation



Traction drive:

structure:
1. AC frequency drive
2. synchronous belt transmission
3. initiative traction roller adopts steel roller structure, s-shaped layout
4. rotating body adopts imported bearings



slitting part:

1. slitting type: round knife
2. waste material will be blowed by fan



Rewinding roller

structure:
1. swing arm type pressing roller
2. clutch is pneumatic type, pressure adjusted Precision pressure regulating valve
Specifications:
1. roll diameter 100 mm
2. roll length 1650 mm



Rewinding Part:

Structure:
1. double slipped air shafts rewinding up and down
2. automatic tension control
3. rewinding shaft can be movable
4. Auto Unloader
5. 3 inch double slipped air shafts 2 set


Pneumatic hydraulic system:

1. machine adopt many pneumatic and hydraulic actuators, control by the touch screen, through electromagnetism valves to perform, highly automatically, reducing labor intensity



Electrical control system:

1. touch screen, PLC control, advanced technology
2. touch screen, display and set the speed, winding length, unwinding and winding tension



Technical data:

Maximum unwind diameter1200mm
Maximum rewind diameterUp:φ800mm;Down:φ1000mm
Slitting width30-1600mm
Unwinding Paper core dia3/6″
Max machine Speed400m/min
Unwinding motor power11kW
Rewinding motor power11kW
Traction motor power7.5kW
Total power54.5kW
Machine size4100(L)×4600(W)×2300mm(H)
Machine weight5000kg
Suit for Materialadhesive sticker
Machine colourMilky white(other colors can be chosen)


Note:The Machine can be designed for customers' materials and detail demand.

Video:



For more information, please add my whatapp/viber/mobile/wechat/qq:+8615158408090



FAQ:
Q:1.How can I get the trainning and machine installation after I order it?
A:
A)Machine manual and operation video will be offered
B)Professional engineers team can offer 7-24 service( we will reply your questions within 24 hours)
C)Oversea service is available
D)Welcome to visit our factory for the trainning

Q:2.Do you arrange shipment for the machine?
A:
A)Under CFR or CIF terms, we are responsible for shipping from China port to the destination port.
B)Under FOB or EXW terms, clients shall arrange shipment by themselves or their agent

Q:3.How is the package?
A:
A)water proof plastic film package
B)Fumigation wooden box

Q:4.Are you manufacture or trading company?
A:
A)manufacturing and trading combo
B)we are the group company with many sub factorys

Q:5.Where is your factory located? How can i visit here?
A:
A)Our office is daohang road,dongshan economical development zone,ruian city,wenzhou city,zhejiang province
B)Our airport is Wenzhou Longwan International Airport .It is about 40 minutes from airport to our factory

Q:6.Can you do OEM?
A:
No problem

Q:7.How can I get some samples?
A:
we can make samples as your detailed requirements or own design.you can arrange RPI(remote pick up)service upon Fedex,Ups,Dhl,Tnt ect to have the samples collected or info us your dhl consignee acount no

Q:8.I never use this kind of machine before, is it easy to learn?
A:
User friendly english manual and operation video will be offered, if there is still any questions, we can talk by whatapp,skype,viber ect online service.Moreover, you can come to our factory to learn how to use it before shippment, our technician will get you professional guidance.we can also offer the oversea service.

Q:9.How can I know this machine is suitable for me?
A:
before ordering, we will offer every details of the machinery for your reference, or you could tell us your detailed requiements, our technician will recommend the most suitable machine for you. furthermore. we can make a sample advance for you to check if you give us your drawing


Agents wanted all around the world
Agents Introduction:
We are sincerely seeking companies around the world to represent us and distribute our products in their market. Exclusive agencies are allocated within each country.
Products Introduction
Gravure printing machine, Lamination machine, Slitting machine , Flexo printing machine, Bag making machine, Film blowing machine, screen printing machine, inspection and rewinding machine etc.
Agent Requirements
Agents must have:
1) A good reputation and sale volume in their country.
2) Annual sales turnovers of more than USD200,000.
3) Search for long-term and stable partnership.
Agents Required for the Following Countries:
Europe, Middle East, Africa, Asia, Latin America etc. All over the world
If you are interested in becoming an agent please be free to contact me:mob/whatapp/viber:+8615158408090
Our Advantage:

1. O2O- online to offline connection development mode

2. Agent all around the world to market the machine.

3. 30% profit to invest into new tech and research

4. Oversea showroom to catch more clients and help agent to less the cost

5. Manufacturing and trading combo

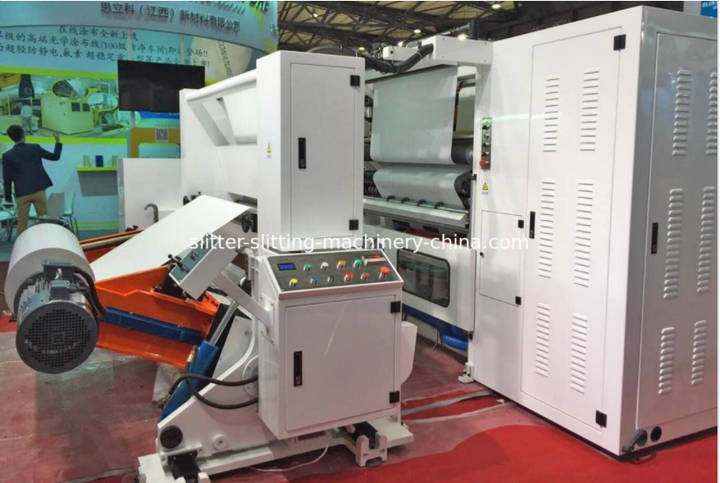

Machine Pictures:

Machine details pictures:
