Quick Details

  • Plate Type: Screen Printer
  • Condition: New
  • Place of Origin: Zhejiang, China
  • Brand Name: Allfine
  • Model Number: LC-1050AG
  • Usage: Label Printer, Paper Printer
  • Automatic Grade: Automatic
  • Color & Page: Single color
  • Voltage: 380V
  • Gross Power: 11.3kw
  • Dimensions(L*W*H): 6700*3060*2050mm
  • Weight: 6300kgs
  • Certification: CE ISO9001
  • Warranty: One Year
  • After-sales Service Provided: Engineers available to service machinery overseas

Packaging & Delivery

Packaging Details wooden box package
Port ningbo

HD video link of LC-1020 Full-Auto Cylinder Screen Press (full production line, include UV dryer, collection machine)



HD video link about LC-T model screen automatic coating machine



HD video link about LC-1213SII model full auto exact exposuring machine



HD video link about LC-1012 1014H horizontal type drying container (after cleaning screen frame by water)



HD video link about LC-Mechanical Type Stretching Machine, then slit the waste silk





1050AG Full Automatic Stop Cylinder silk Screen Press ceramic and glass transfer film,advertising,packing printing ect


We provide the classic automatic stop-cylinder screen press with max. speed up to 4,000 sheets/hour, which can compete with world famous brand like Sakurai and SPS. And the semi-automatic and 3/4 automatic flat-bed screen press are also available for short run jobs. You can also find all necessary auxilaury machines for making the screen plate in our product range.

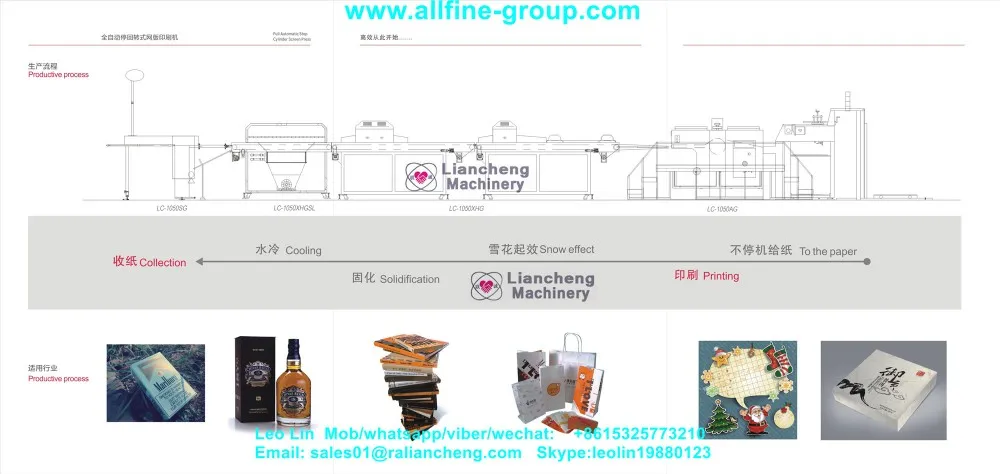

After equipped with various dryers and cooling systems, the production line can work out multi-color screen printingUV spot gloss varnishingglitter coatingscatcher card printingdecal screen printing and also a few kinds of luxurious finishing effects for the printed sheets.
1050AG full automatic stop cylinder screen press is a new model which brings in advanced design and production technology, adsorb the mature offset printing technology, innovation and has a patented technology, mainly for printing on paper and packing field. The machine adopts the classic stop cylinder , the maximum operating speed is up to 4000pcs/h; Meanwhile, the machine use non-stop feeder and non-
stop collection technology, change the old operation mode which must stop machine to load substrate
and collection, which eliminate the waste of time in loading and collecting, improve the printing ef ficiency
more than 30%. It's suitable for the screen printing on ceramic and glass transfer film, advertising, packing
printing, brand, textile transfer, electronics and other industries.
LC-1050AG Full Automatic Stop Cylinder Screen Press

Max. Sheet Size1050×760mm
Min. Sheet Size560x350mm
Max. Printing Size1050×750mm
Screen Frame Size1300×1170mm
Paper Thickness90~420gsm
Pricision of Overprint0.1mm
Printing Speed800-4000sph

Pre-stacker feeder ensures high speed production without stop.
Pull and push side lay ensures precious sheet feeding.
Stop cylinder technology ensure the precious printing registration at high speed performance.
Screen frame can be pulled out for easy cylinder and frame cleaning.
UV drying unit makes the sheet drying in the shortest period for automatic collecting.

Feeding part: Full automatic non-stop feeder with pre-stacker, non-stop primary and secondary feeding program, saving the working time, easy to operate , increase the efficiency, raised feeder height ensure the feeding height.

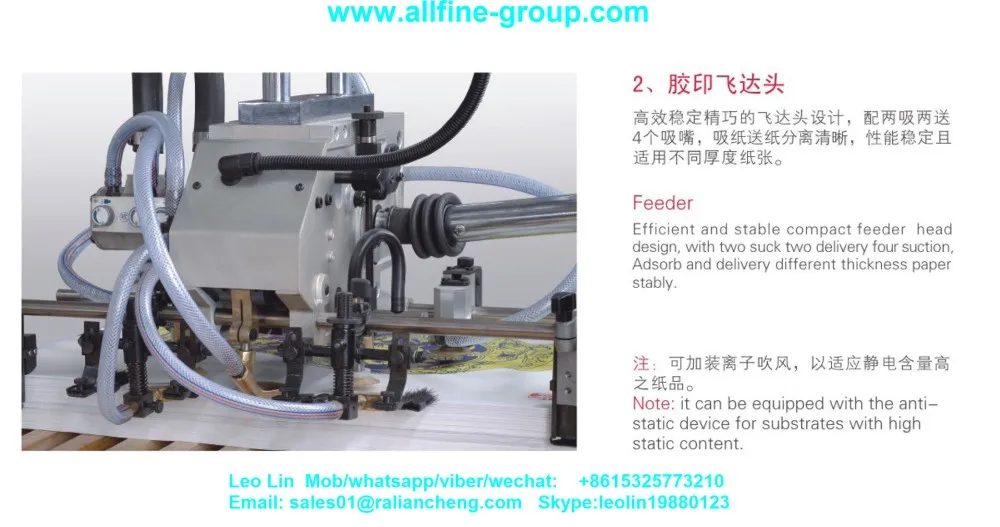

Feeder: Efficient and stable compact feeder head design, with two suck two delivery four suction, Adsorb and delivery different thickness paper stably. Note: it can be equipped with the anti-static device for substrates with high static content.
Feed board: Feed surface is worked by plating, avoid the rear of printing substrates to be scratched, at the same time feeding is very smooth; with the sensitive sensor it will stop automatically if without paper.
Cylinder and register system: Cylinder stops step automatically to ensure the forehead of the printing stock can be sent accurately to the gripper of cylinder , which is up to extreme high precision; at the same time, gripper of cylinder and pull side-lay both have there magic eyes for supervising if the printing stock is in correct place.

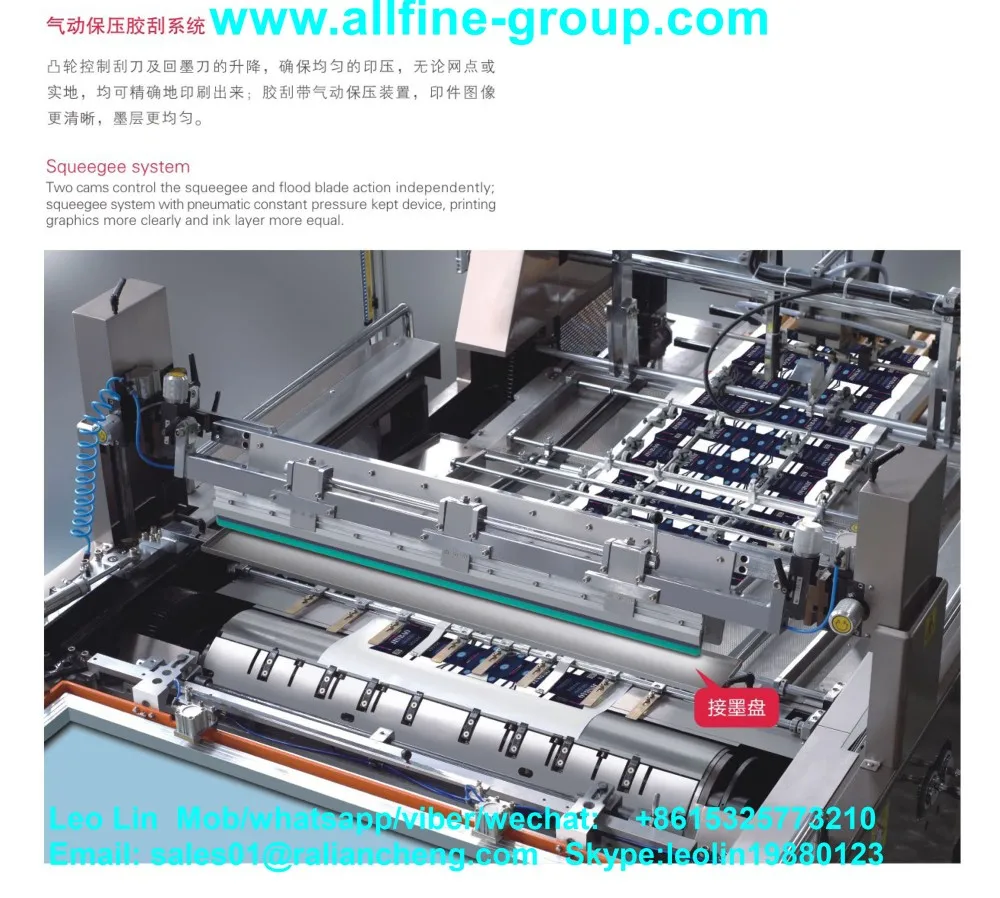

Squeegee system: Two cams separately control the movement of squeegee and ink return blade; squeegee with the pneumatically pressure kept device, the printing graphics is more clearly and the ink layer is more well-proportioned.
The screen frame rack can be pulled out, which is easy for adjusting the register or feeding, as well as cleaning the cylinder and screen frame; at the same time, it is assembled with device to hold the ink dropped to avoid the ink drops on the cylinder.

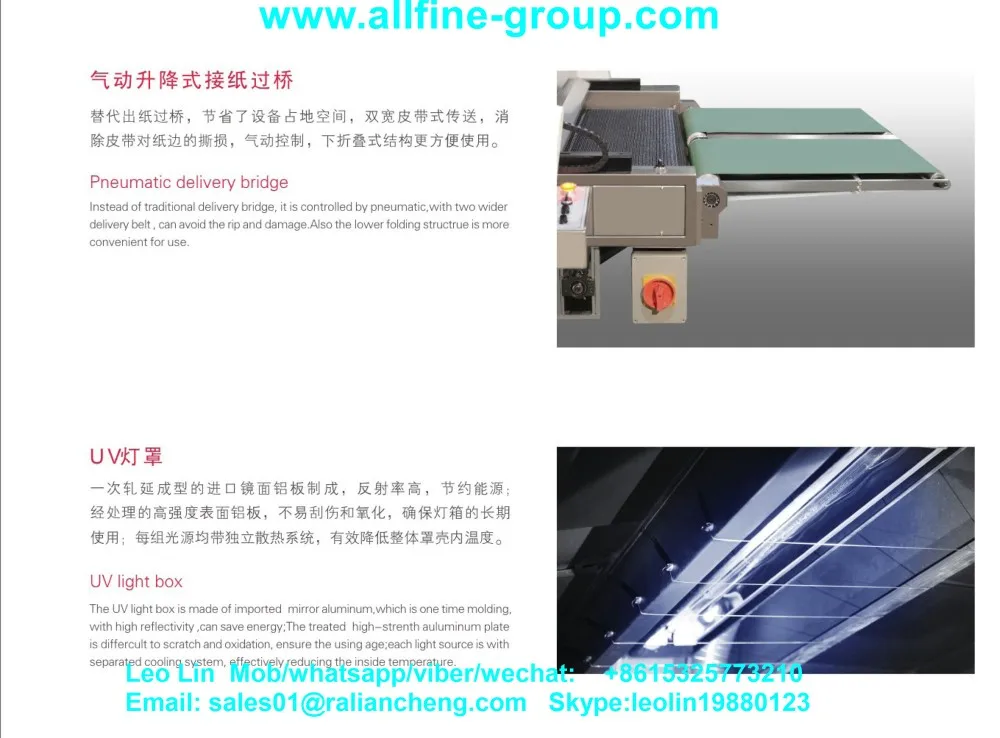

Delivery board: can be turned down by 90°, easy to adjust the screen frame, fix blade, clean and inspect; with vacuum adsorption ensures delivery smoothly. The two wider convey belt which can avoid the belt break the substrate.

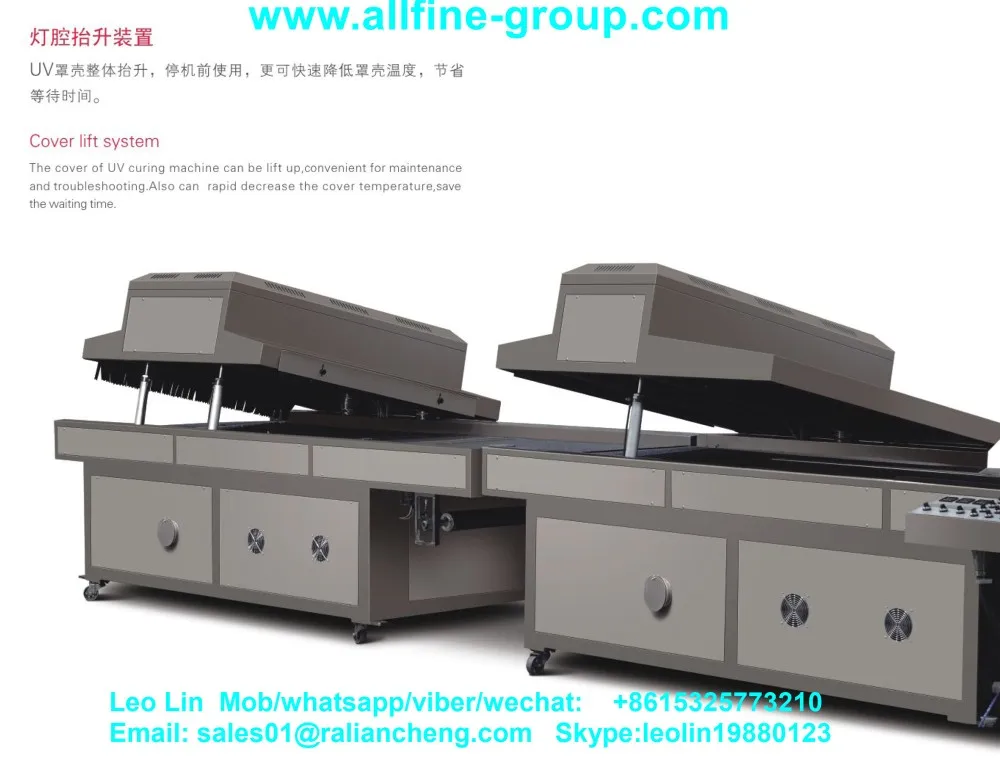

Cover lift system: The inside temperature is inspected multipointly, if the temperature is abnormal the machine will stop automatically, as well as the cover will lift automatically.
Youtube link of LC-1050AG full automatic screen printing machine:
For more information, please add my whatapp/viber/mobile/wechat/qq:+8615158408090

Q:1.How can I get the trainning and machine installation after I order it?
A)Machine manual and operation video will be offered
B)Professional engineers team can offer 7-24 service( we will reply your questions within 24 hours)
C)Oversea service is available
D)Welcome to visit our factory for the trainning
Q:2.Do you arrange shipment for the machine?
A)Under CFR or CIF terms, we are responsible for shipping from China port to the destination port.
B)Under FOB or EXW terms, clients shall arrange shipment by themselves or their agent
Q:3.How is the package?
A)water proof plastic film package
B)Fumigation wooden box
Q:4.Are you manufacture or trading company?
A)manufacturing and trading combo
B)we are the group company with many sub factorys
Q:5.Where is your factory located? How can i visit here?
A)Our office is daohang road,dongshan economical development zone,ruian city,wenzhou city,zhejiang province
B)Our airport is Wenzhou Longwan International Airport .It is about 40 minutes from airport to our factory
Q:6.Can you do OEM?
No problem
Q:7.How can I get some samples?
we can make samples as your detailed requirements or own design.you can arrange RPI(remote pick up)service upon Fedex,Ups,Dhl,Tnt ect to have the samples collected or info us your dhl consignee acount no
Q:8.I never use this kind of machine before, is it easy to learn?
User friendly english manual and operation video will be offered, if there is still any questions, we can talk by whatapp,skype,viber ect online service.Moreover, you can come to our factory to learn how to use it before shippment, our technician will get you professional guidance.we can also offer the oversea service.
Q:9.How can I know this machine is suitable for me?
before ordering, we will offer every details of the machinery for your reference, or you could tell us your detailed requiements, our technician will recommend the most suitable machine for you. furthermore. we can make a sample advance for you to check if you give us your drawing

Agents wanted all around the world
Agents Introduction:
We are sincerely seeking companies around the world to represent us and distribute our products in their market. Exclusive agencies are allocated within each country.
Products Introduction
Gravure printing machine, Lamination machine, Slitting machine , Flexo printing machine, Bag making machine, Film blowing machine, screen printing machine, inspection and rewinding machine etc.
Agent Requirements
Agents must have:
1) A good reputation and sale volume in their country.
2) Annual sales turnovers of more than USD200,000.
3) Search for long-term and stable partnership.
Agents Required for the Following Countries:
Europe, Middle East, Africa, Asia, Latin America etc. All over the world
If you are interested in becoming an agent please be free to contact me:mob/whatapp/viber:+8615158408090
Our Advantage:

1. O2O- online to offline connection development mode

2. Agent all around the world to market the machine.

3. 30% profit to invest into new tech and research

4. Oversea showroom to catch more clients and help agent to less the cost

5. Manufacturing and trading combo

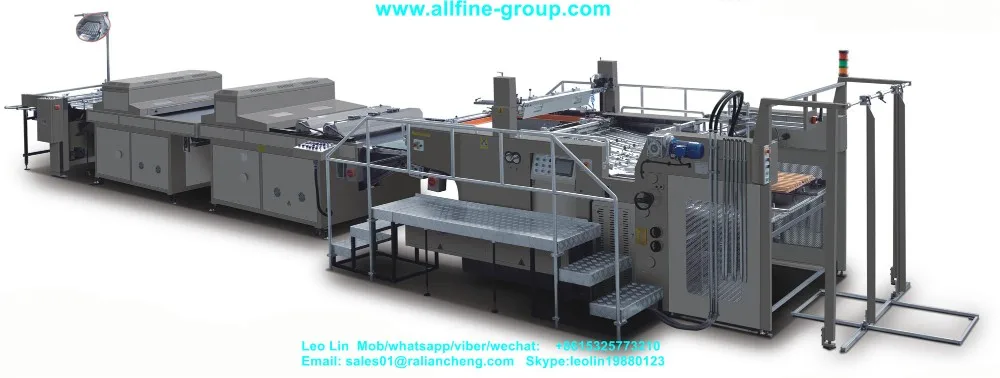

Machine Pictures:

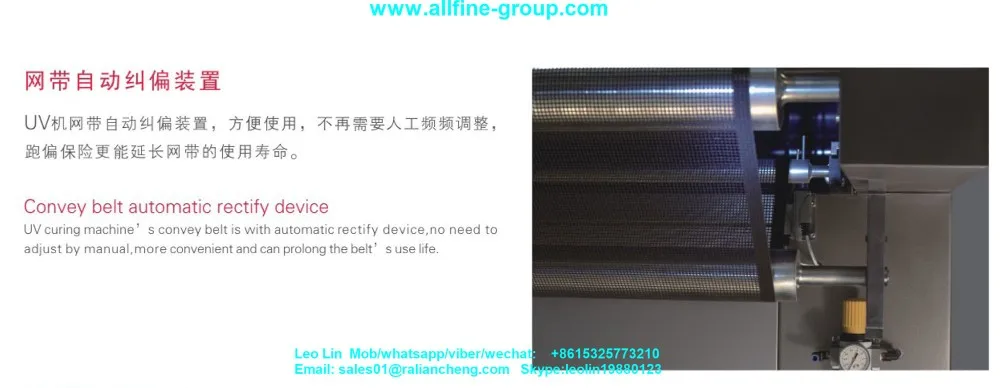

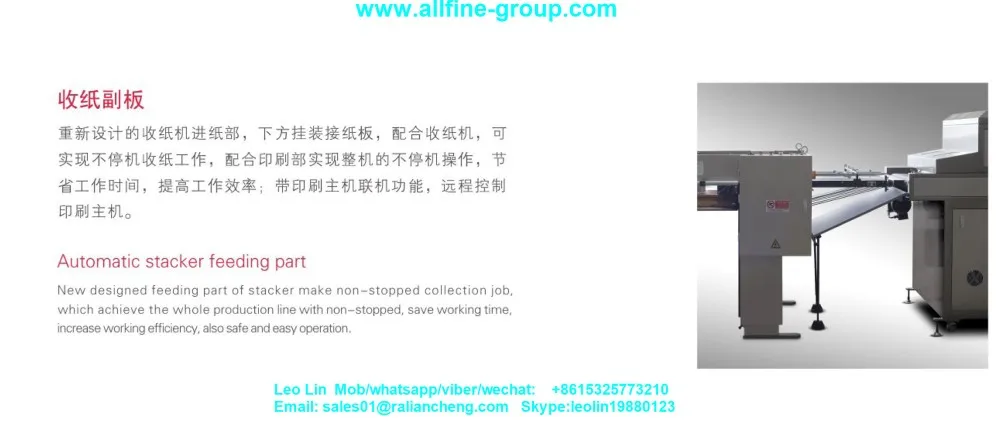

Machine details pictures:
Finished product pictures:
