LC-900TC fully automatic Window Patching Machine/window film machine/window sticker gluer for paper box and carton box

$85000.0000 >=1
FOB Price:	US $85,000 - 85,000 / Set
Payment Terms:	L/C,T/T,Western Union,MoneyGram

Contact Supplier

Loading...

Product Detail

Quick Details

Condition: New
Product Type: window patching machine
Processing Type: Binding Machine
Place of Origin: Zhejiang, China
Brand Name: Liancheng
Model Number: LC-900TC
Voltage: 380V
Power: 11.3kw
Dimension(L*W*H): 7200*2360*1550
Weight: 2000kgs
Certification: ce
Warranty: 1 Year
After-sales Service Provided: Engineers available to service machinery overseas

Packaging & Delivery

Packaging Details	wooden box
Port	ningbo

HD video link about LC-900TC auto window patching machine

https://youtu.be/v5FsIQShpms

https://youtu.be/AsCKvwn-kow

LC-900TC fully automatic Window Patching Machine/window film machine/window sticker gluer for paper box and carton box

We provide the classic automatic stop-cylinder screen press with max. speed up to 4,000 sheets/hour, which can compete with world famous brand like Sakurai and SPS. And the semi-automatic and 3/4 automatic flat-bed screen press are also available for short run jobs. You can also find all necessary auxilaury machines for making the screen plate in our product range.

After equipped with various dryers and cooling systems, the production line can work out multi-color screen printing, UV spot gloss varnishing, glitter coating, scatcher card printing, decal screen printing and also a few kinds of luxurious finishing effects for the printed sheets.

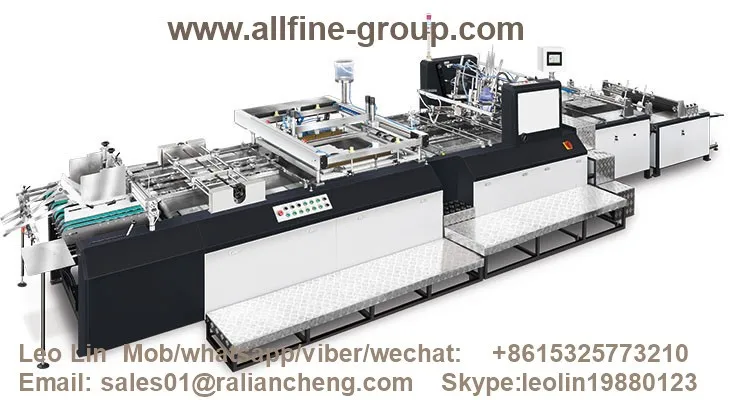

LC-900TC Window Patching Machine

Feature:

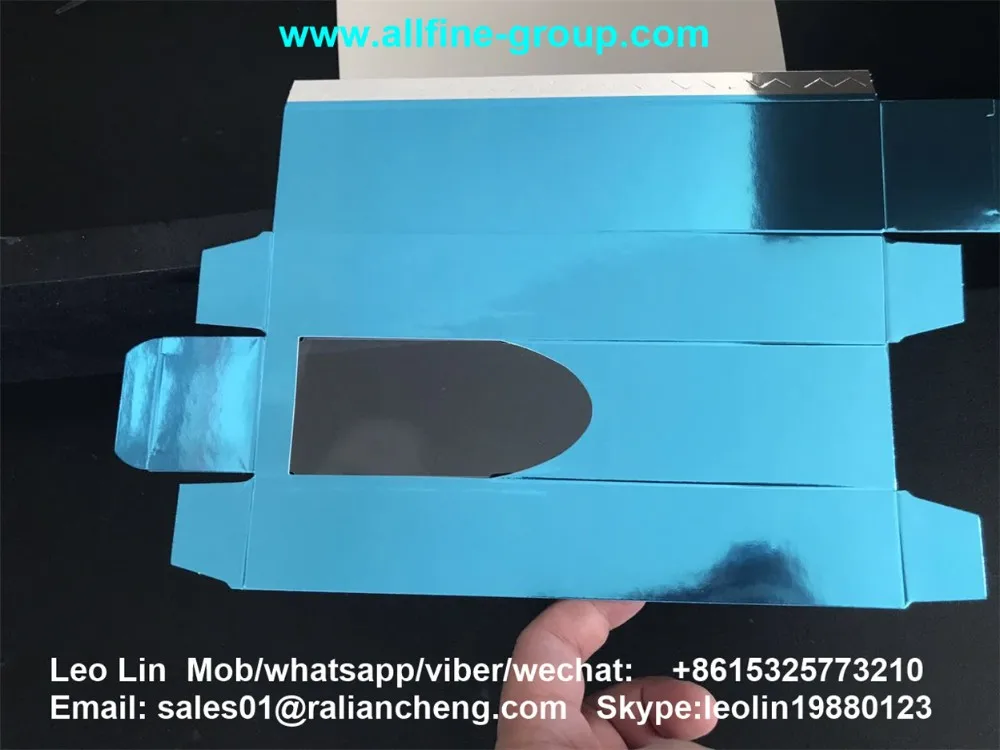

Automatic profiled window stickers used for various type of paper box and carton box window patching after die cutting and creasing. suit for after cutting angle, line ball piece type film bonding. this machine adopt screen print gluing;gluing uniformly;servo feeding positioning printing;three-point positioning laminating,high precision printing and laminating;achieve multiple parallel film bonding; best choice for high-end toy box, packaging box,cosmetics boxes, wine boxes etc window processing.

Model	LC-900TC
Max. Sheet Size	900×500mm
Min. Sheet Size	150×100mm
Max. Film Size	450×280mm
Min. Film Size	20×20mm
Film Thickness	0.1~1.0mm
Max. Working Speed	500-2200pcs/h
Cardboard	120~700gsm
Corrugated Board	≤5mm
Total Power	11.3kw
Weight	2000kgs
Dimension(LxWxH)	7200×2360×1550mm

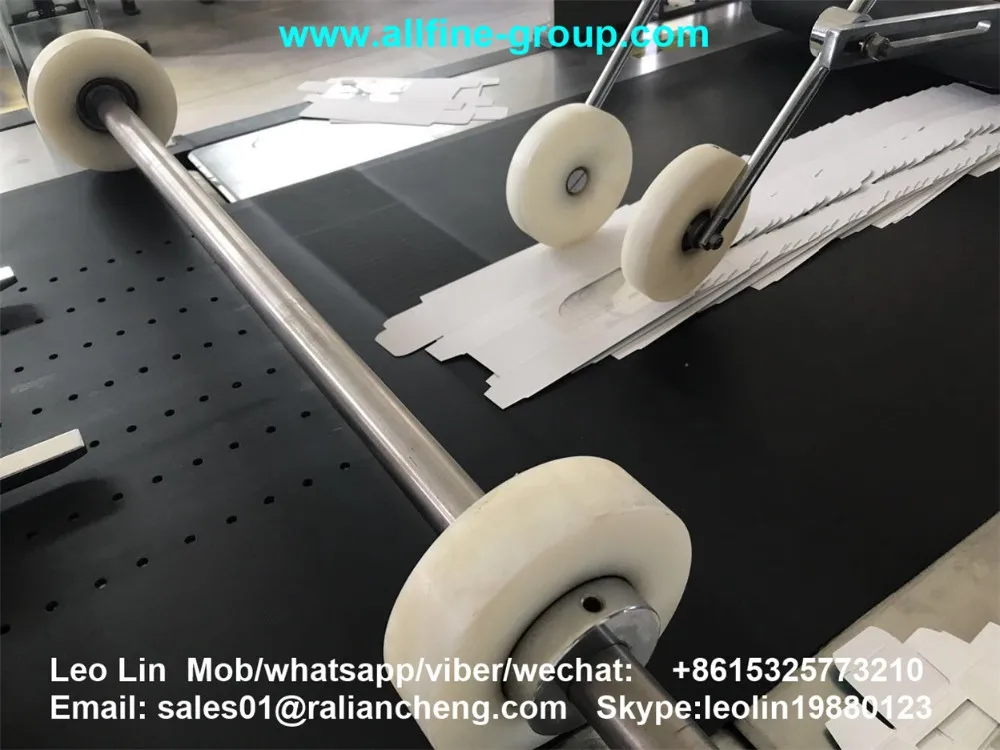

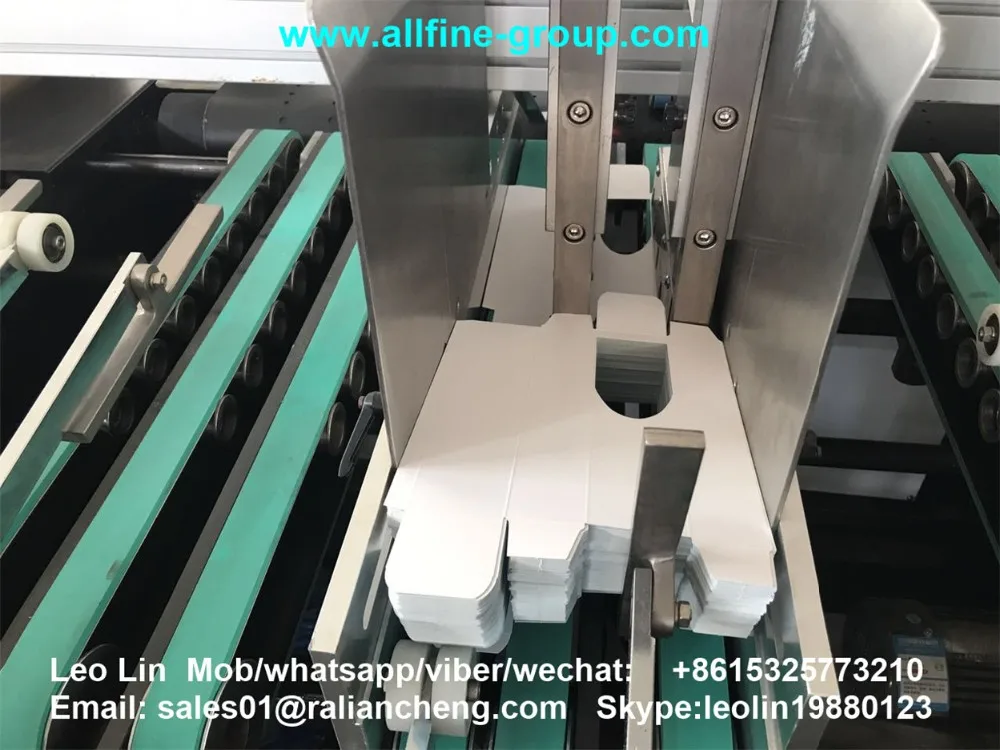

1. Bottom friction box feeder ensures smooth and stable box feeding.

2. Photo-electric tracing and central controlfor box feeding and correction before gluing.

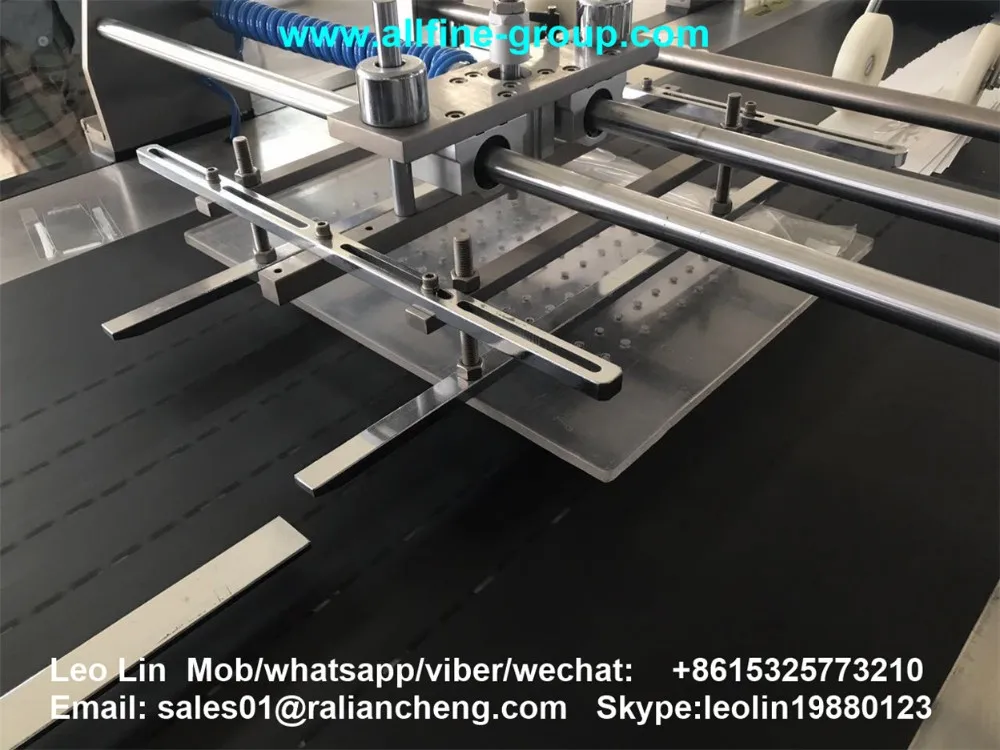

3. Air suction pass the cutted film preciously to the window area for gluing.

4. Shaped film must be cutted well before appliaction on this machine, so it can do various shaped box.

5. PLC, man-machine interface, central control are adopted to realize the automatic functions of box feeding, conveying, gluing, film patching and collecting before folding boxes.

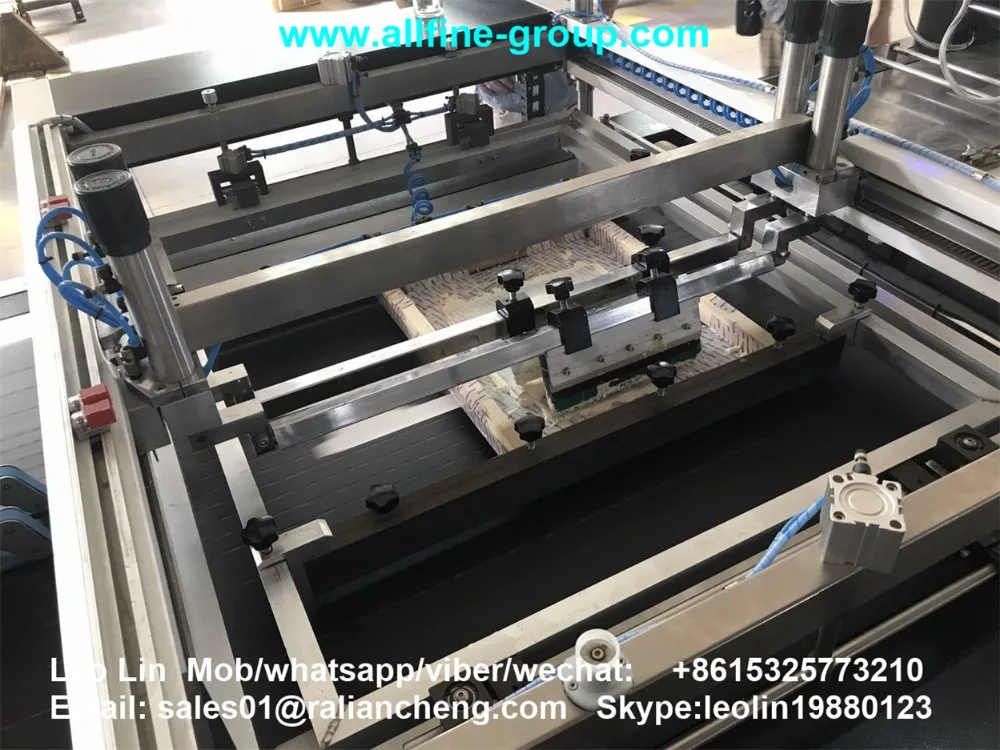

6. Screen printing glue applicater with even and solid glue application on the box.

7. Button and touch screen setting for easy operation.

Video: https://youtu.be/ejSOegOa3IA

https://youtu.be/KGecNp29Jgs

https://youtu.be/vD60VOakaNE

https://youtu.be/tD8ueRax4mw

For more information, please add my whatapp/viber/mobile/wechat/qq:+8615158408090

For more machines, please check website:http://www.allfine-group.com/ http://www.flexo-printer-machine.com/ http://www.flexographic-printing-machine.cn/ http://www.slitter-slitting-machinery-china.com/

FAQ:
Q:1.How can I get the trainning and machine installation after I order it?
A:
A)Machine manual and operation video will be offered
B)Professional engineers team can offer 7-24 service( we will reply your questions within 24 hours)
C)Oversea service is available
D)Welcome to visit our factory for the trainning

Q:2.Do you arrange shipment for the machine?
A:
A)Under CFR or CIF terms, we are responsible for shipping from China port to the destination port.
B)Under FOB or EXW terms, clients shall arrange shipment by themselves or their agent

Q:3.How is the package?
A:
A)water proof plastic film package
B)Fumigation wooden box

Q:4.Are you manufacture or trading company?
A:
A)manufacturing and trading combo
B)we are the group company with many sub factorys

Q:5.Where is your factory located? How can i visit here?
A:
A)Our office is daohang road,dongshan economical development zone,ruian city,wenzhou city,zhejiang province
B)Our airport is Wenzhou Longwan International Airport .It is about 40 minutes from airport to our factory

Q:6.Can you do OEM?
A:
No problem

Q:7.How can I get some samples?
A:
we can make samples as your detailed requirements or own design.you can arrange RPI(remote pick up)service upon Fedex,Ups,Dhl,Tnt ect to have the samples collected or info us your dhl consignee acount no

Q:8.I never use this kind of machine before, is it easy to learn?
A:
User friendly english manual and operation video will be offered, if there is still any questions, we can talk by whatapp,skype,viber ect online service.Moreover, you can come to our factory to learn how to use it before shippment, our technician will get you professional guidance.we can also offer the oversea service.

Q:9.How can I know this machine is suitable for me?
A:
before ordering, we will offer every details of the machinery for your reference, or you could tell us your detailed requiements, our technician will recommend the most suitable machine for you. furthermore. we can make a sample advance for you to check if you give us your drawing

Agents wanted all around the world

Agents Introduction:
We are sincerely seeking companies around the world to represent us and distribute our products in their market. Exclusive agencies are allocated within each country.

Products Introduction
Gravure printing machine, Lamination machine, Slitting machine , Flexo printing machine, Bag making machine, Film blowing machine, screen printing machine, inspection and rewinding machine etc.

Agent Requirements
Agents must have:
1) A good reputation and sale volume in their country.
2) Annual sales turnovers of more than USD200,000.
3) Search for long-term and stable partnership.
Agents Required for the Following Countries:
Europe, Middle East, Africa, Asia, Latin America etc. All over the world
If you are interested in becoming an agent please be free to contact me:mob/whatapp/viber:+8615158408090

Our Advantage:

1. O2O- online to offline connection development mode

2. Agent all around the world to market the machine.

3. 30% profit to invest into new tech and research

4. Oversea showroom to catch more clients and help agent to less the cost

5. Manufacturing and trading combo

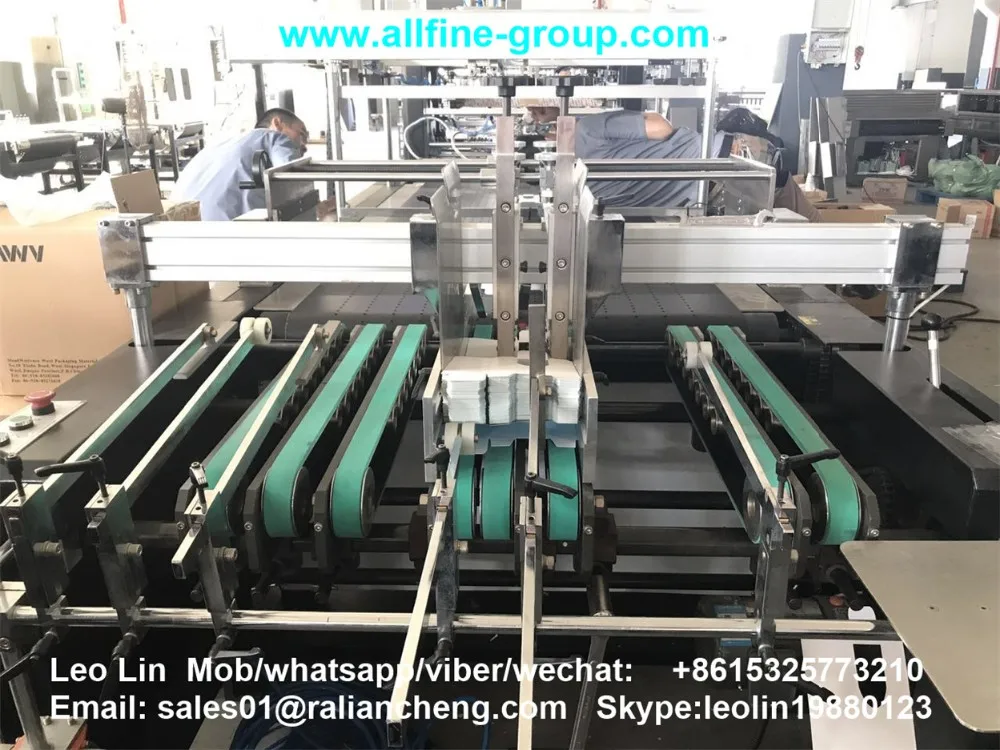

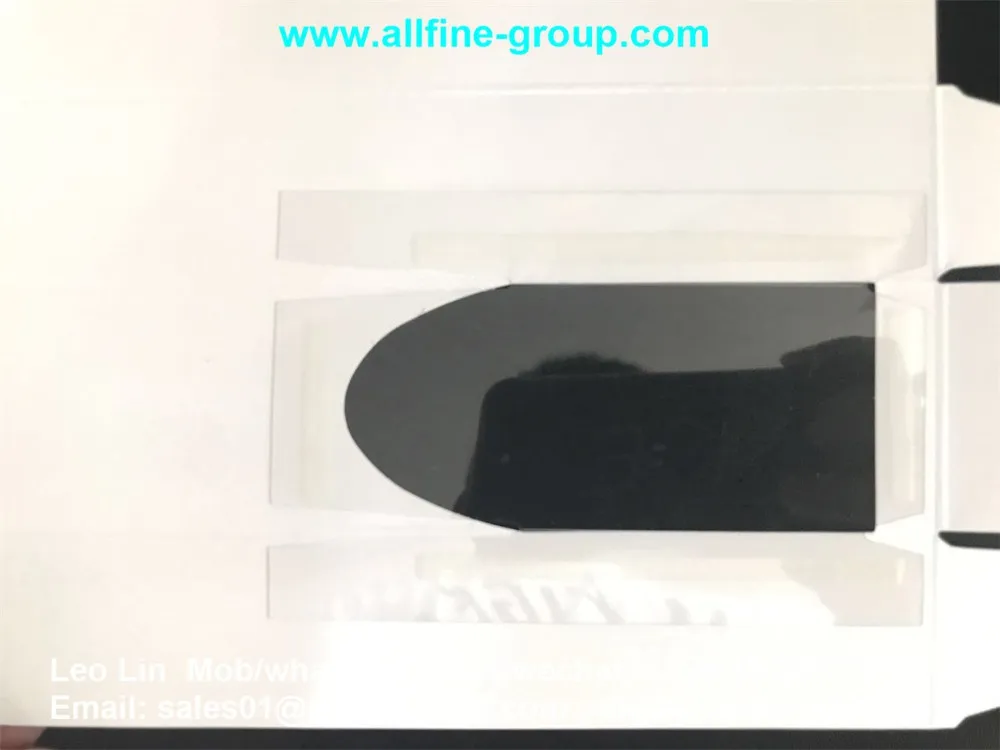

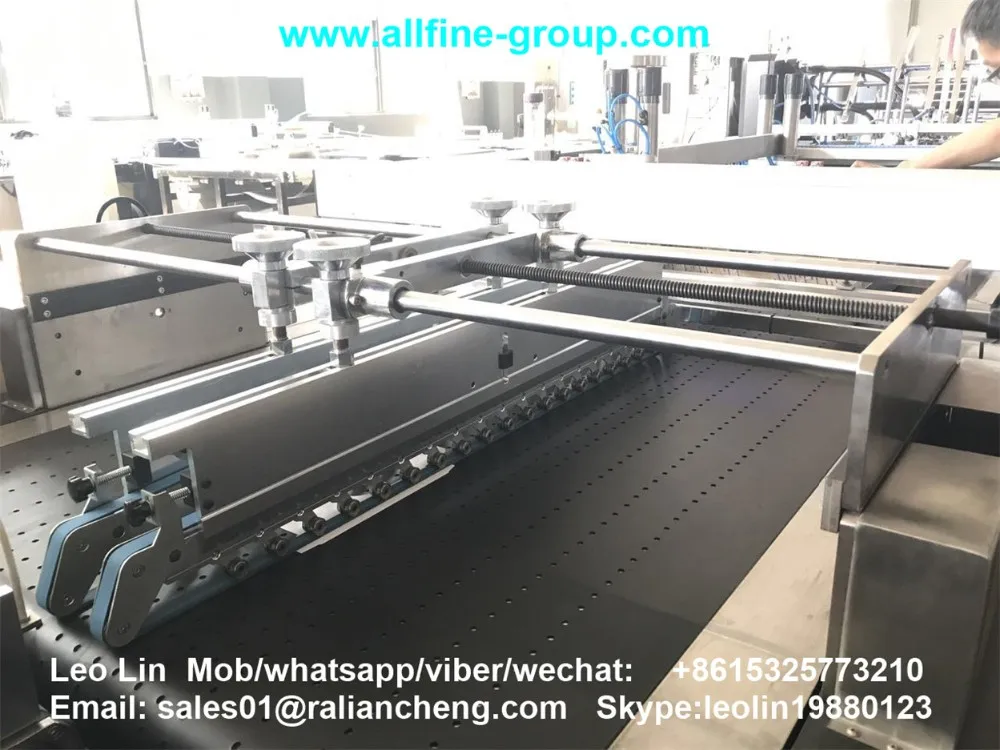

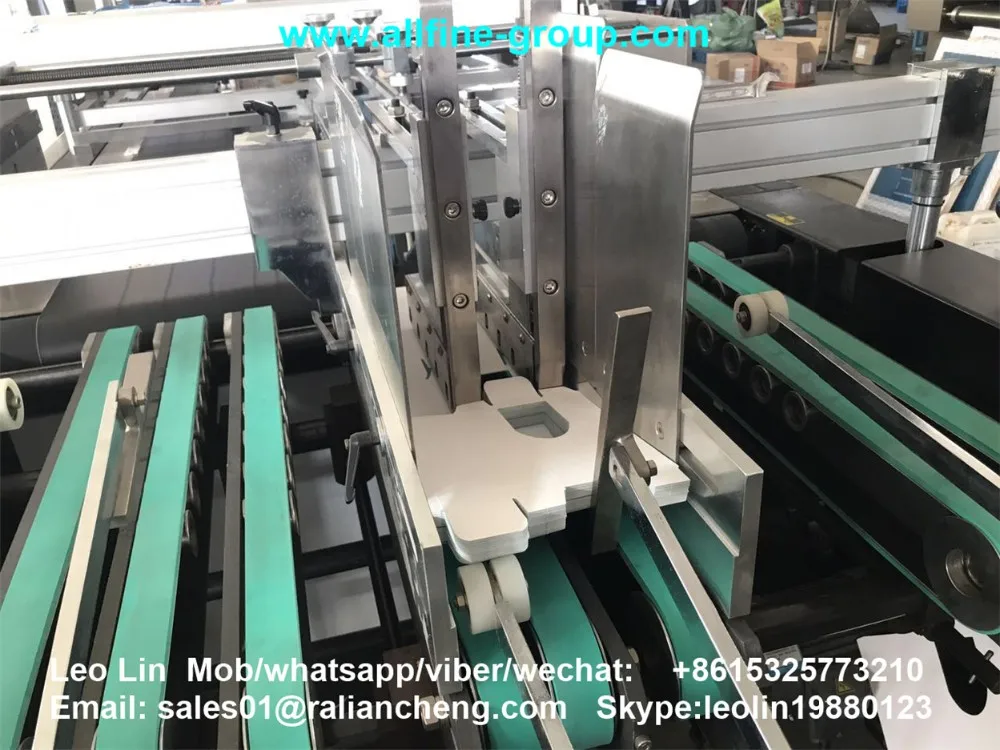

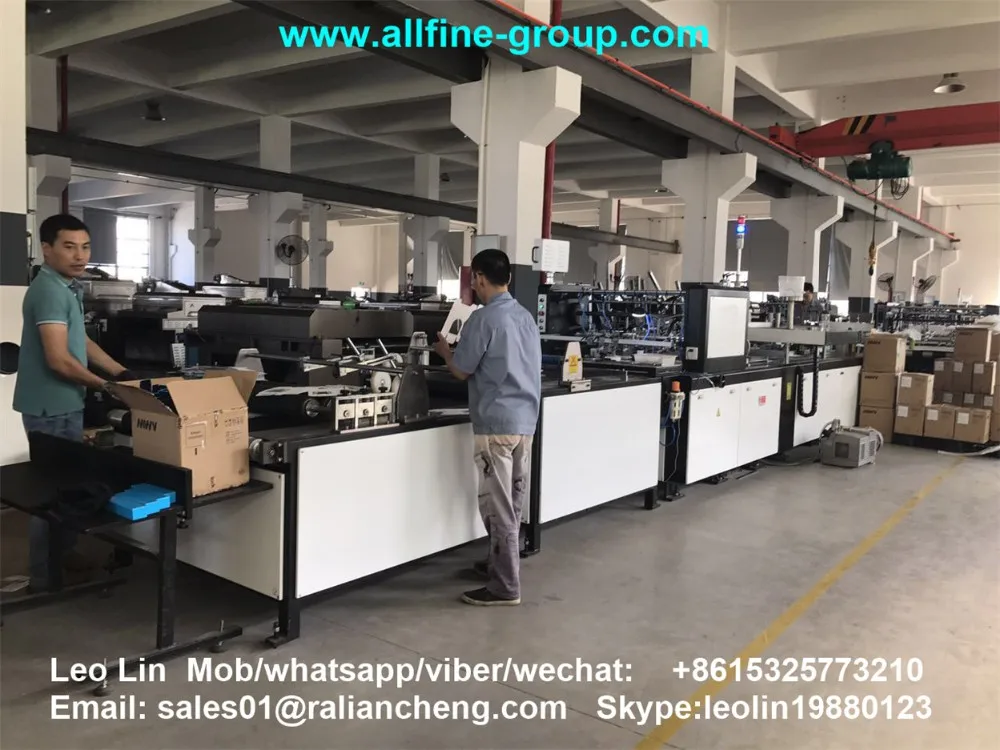

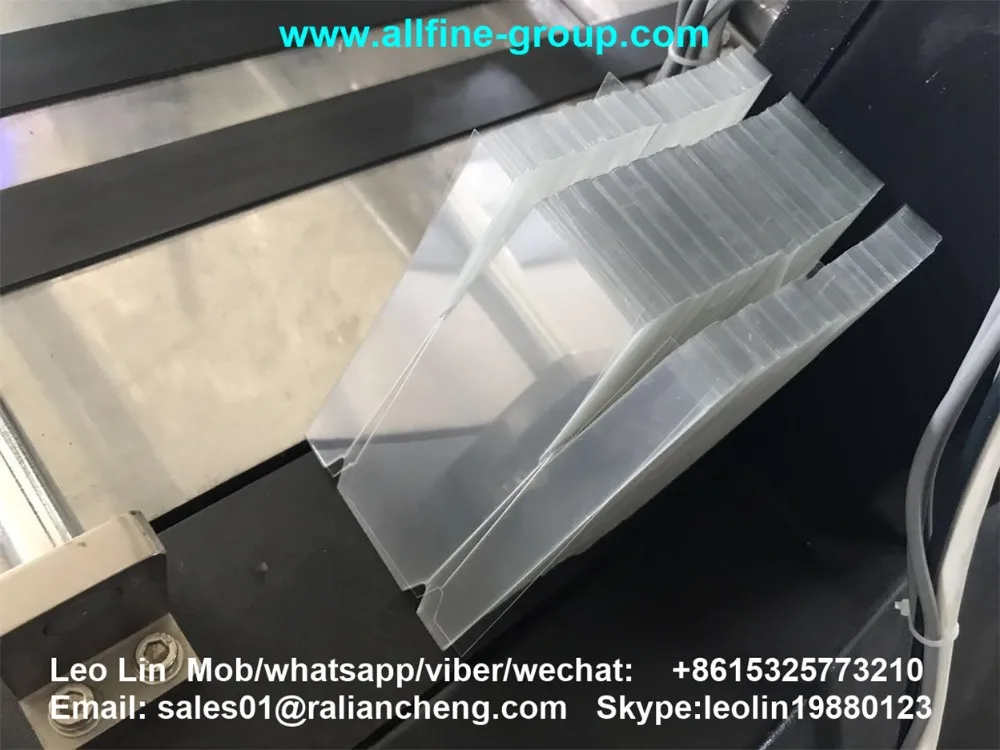

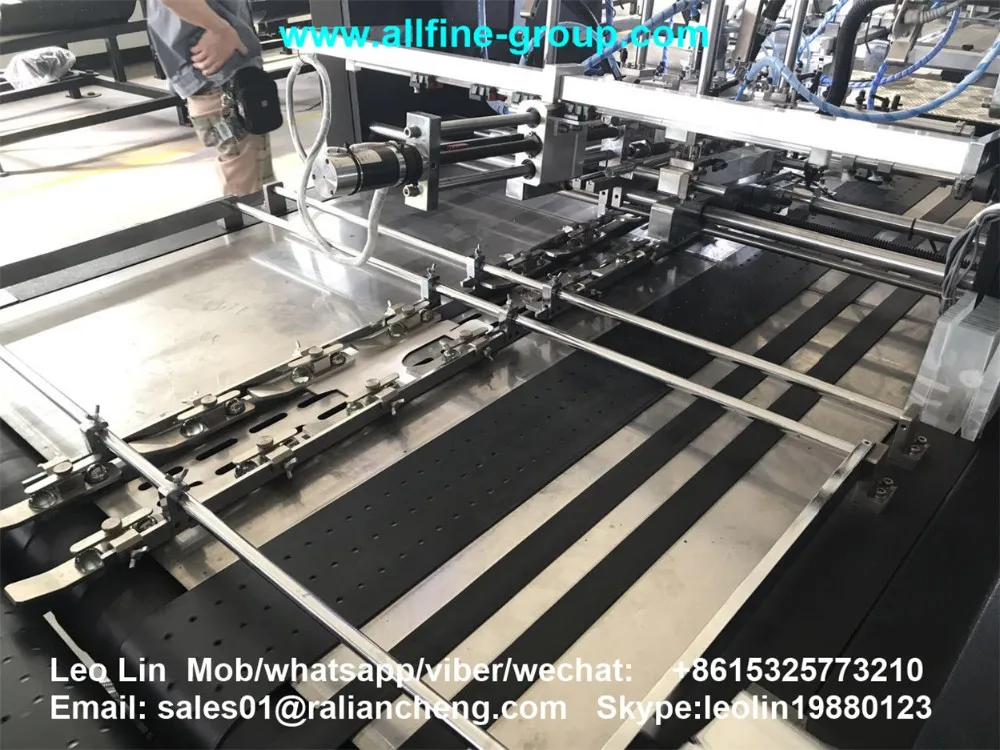

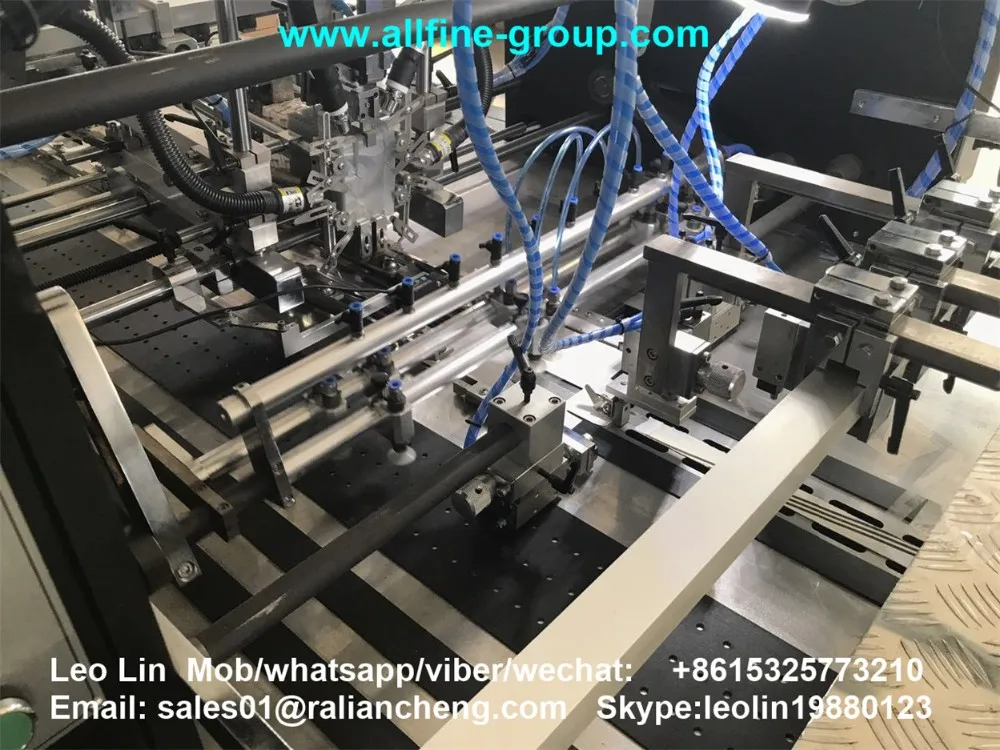

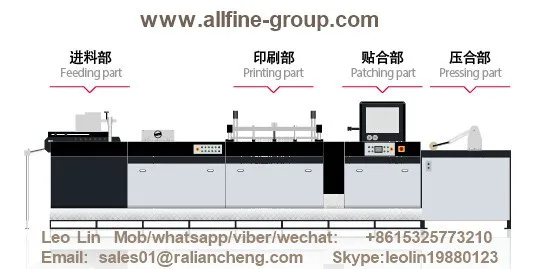

Machine Pictures:
